Single Person

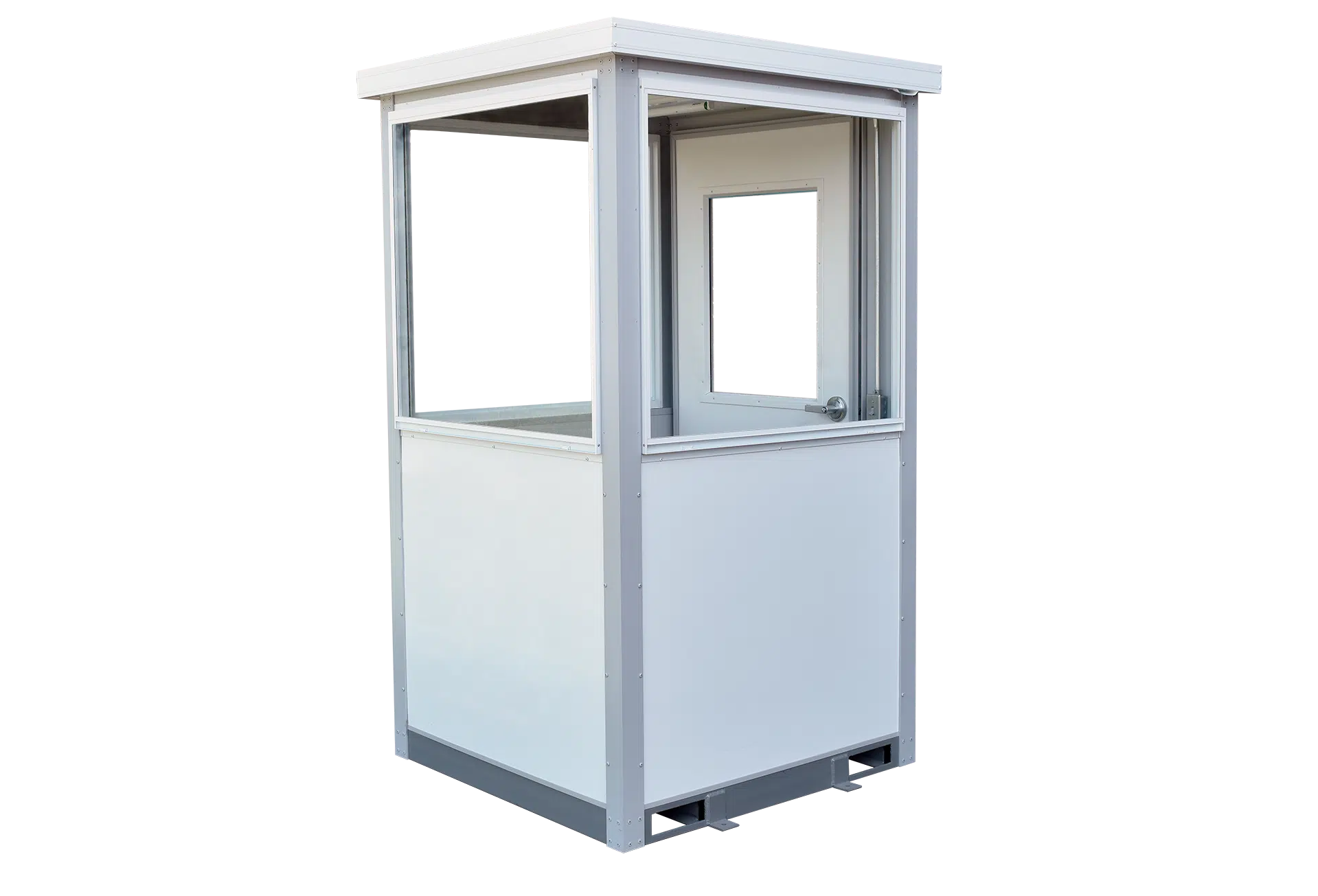

Preassembled Portable Buildings for Single Person Occupancy

Starrco has been perfecting the portable building since we were founded in 1965. Starrco’s preassembled buildings are designed to provide years of maintenance free service. Our portables are the ideal choice for guard booths, ticket booths, gate houses, access control buildings, & many more applications. The structural members are either aluminum or steel with a rust-resistant finish. Walls, ceiling and floor have a solid impact resistant core with a durable aluminum or vinyl covered finish. Windows and sliding doors are aluminum finish, swing doors are commercial grade steel. All Starrco portables come ready to use on a forkliftable base. All you need to do is provide power to your new Starrco booth & installation is complete.

Our Solutions

Starrco’s pre-assembled buildings are designed to provide years of maintenance free service. The structural members are either aluminum or steel with a rust retardant finish. Walls, ceiling and floor have a solid impact resistant core with a durable aluminum or vinyl covered finish. Windows and sliding doors are aluminum finish, swing doors are commercial grade steel.



Get My Free Quote

Specifications & Details

The loading characteristics of Starrco’s preassembled buildings are:
Snow Load: 30 PSF
Wind Load: 90 MPH
Floor Load: 50 PSF

Structural members for corners are 3” x 3”, ¼” aluminum angle. Structural members between panels are 4” x 2½”, 3/16” aluminum “T” extrusion. Top frame will be 2 ½” x 2 ½”, 3/16” aluminum angle. All aluminum structural members will be 6063 alloy, T6 temper, painted with grey enamel finish.

Wall panels are a minimum ¾” thick sandwich construction. Exterior of panel is smooth white painted aluminum laminated to high density OSB board. Panel interior will be 1/8” gray vinyl covered hardboard. Panels will be caulked with a urethane sealant and fastened to structural members with plated screws.

Ceiling panels are a minimum ¾” thick sandwich construction. Interior of panel is 1/8” white vinyl covered hardboard laminated to high density OSB board. Top of panel will have an aluminum vapor barrier.

The building base will be 4” structural steel channels, welded, with stringers on maximum 24” centers. Base includes forklift pockets. Steel channels will be painted with a rust inhibitive paint. Sub-flooring is two layers of 5/8” OSB board with aluminum vapor barrier laminated underneath. Finished floor will be commercial grade seamless vinyl.

On buildings 4’ wide or less, the roof will ship installed on the building. Installed roof consists of .060” EPDM membrane laminated to ceiling panels with aluminum gutters on all four sides. On buildings larger than 4’ wide, roof consists of corrugated aluminum pans. Perimeter of roof will be anodized aluminum gutters and fascia trim. Roof is shipped knocked-down, ready for on-site assembly by others

Windows will be single sliding aluminum with locking device. Sliding sections are glazed with 1/8” clear tempered safety glass. All window framing is white painted aluminum finish.

Swinging:

Door will be a commercial grade 3068 20ga. steel with a 1/8” tempered safety glass window in top half. Door includes 1 ½ pair of 4 ½” x 4 ½” ball bearing hinges and a stainless steel key-in-knob lockset. Door will be mounted on a painted aluminum door frame with wool pile weatherstrip. Door is painted white.

Sliding:

Door will be 6068 aluminum patio sliding type. Doors will be glazed with 3/16” tempered safety glass in upper section and have a solid panel in lower section. Keyed locking device with pull handle is included. All door parts have a painted aluminum finish. Buildings with a model number ending with “-1” indicate two sliding doors are included on the long walls.

Pre-wired electrical package includes one 125v duplex receptacle, one 230v single receptacle, fluorescent lighting, and one 125 amp circuit breaker box. All electrical components are UL listed and all wiring conforms to the National Electrical Code.

All Starrco pre-assembled buildings can be custom fitted to meet a variety of needs.
Available options include:
• Air Conditioning and Heating
• Exterior Lighting
• Thermal Insulation
• Custom Painted Exterior
• Special Glazing (Tinted, Insulated, Polycarbonate, etc…)
• Countertops and Shelving
• Standard or Thru-Wall Cash & Transaction Drawers
• Aluminum Tread Plate Flooring
